4 Channel HDTVI DVR
+ KDV
2
4 Channel HDTVI DVR

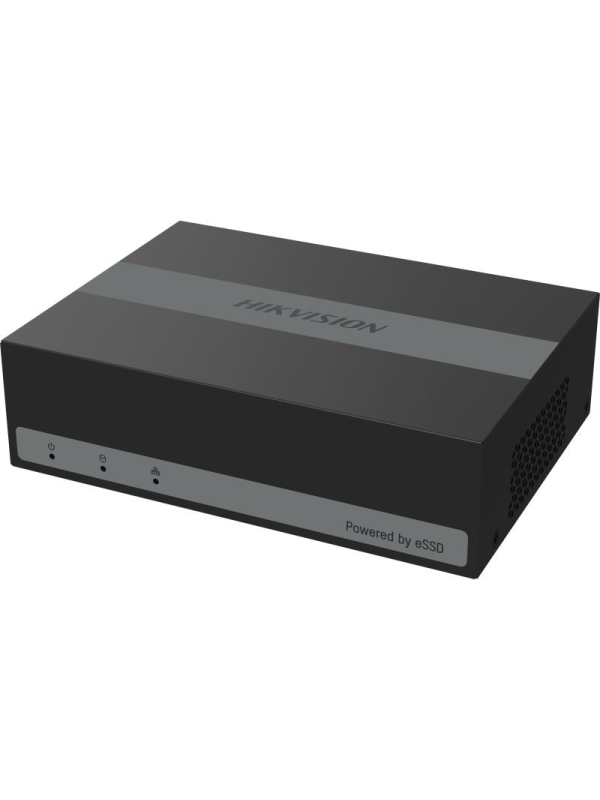

Hikvision 4 Channel HDTVI DVR
- Low power consumption
- Audio over coaxial cable
- Powered by eSSD technology
- Encoding up to 1080p Lite@30 fps feature
- Scene adaptive bitrate controlled video compression
- Motion Detection 2.0's deep learning-based classification of human and vehicle targets
Video & Audio Input | |
Analog Video Input | 4 kanal Koaksitron bağlantısını destekleyen BNC arayüzü (1,0 Vp-p, 75 Ω) |
IP Video | 1 channel resolution up to 1080p Supports H.265+/H.265 IP cameras |
Video & Audio Output | |
VGA | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Image | |
Audio Bit Rate | 64 Kbps |
Video Compression | |
Video Compression Format | H.265 Pro/H.265 |
Interface Unit | |
Audio Compression Format | G.711u |
Audio In / Out | 4-ch via coaxial cable |
General Features | |
HDTVI Video Input | 1080p25, 1080p30, 720p25, 720p30 |
Consumption | ≤ 5.4W |
Power Supply | 12V DC, 1 A |
Operating Temperature | -10 °C to 45 °C (14 °F to 113 °F) |
Dimension | 151 × 121 × 46mm (5.94 × 4.76 × 1.81 inch) |
AHD Video input | 1080p25, 1080p30, 720p25, 720p30 |
Weight | ≤ 0.5kg |
Encoding Resolution | 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA |
Video Output Mode | HDMI/VGA simultaneous output |
